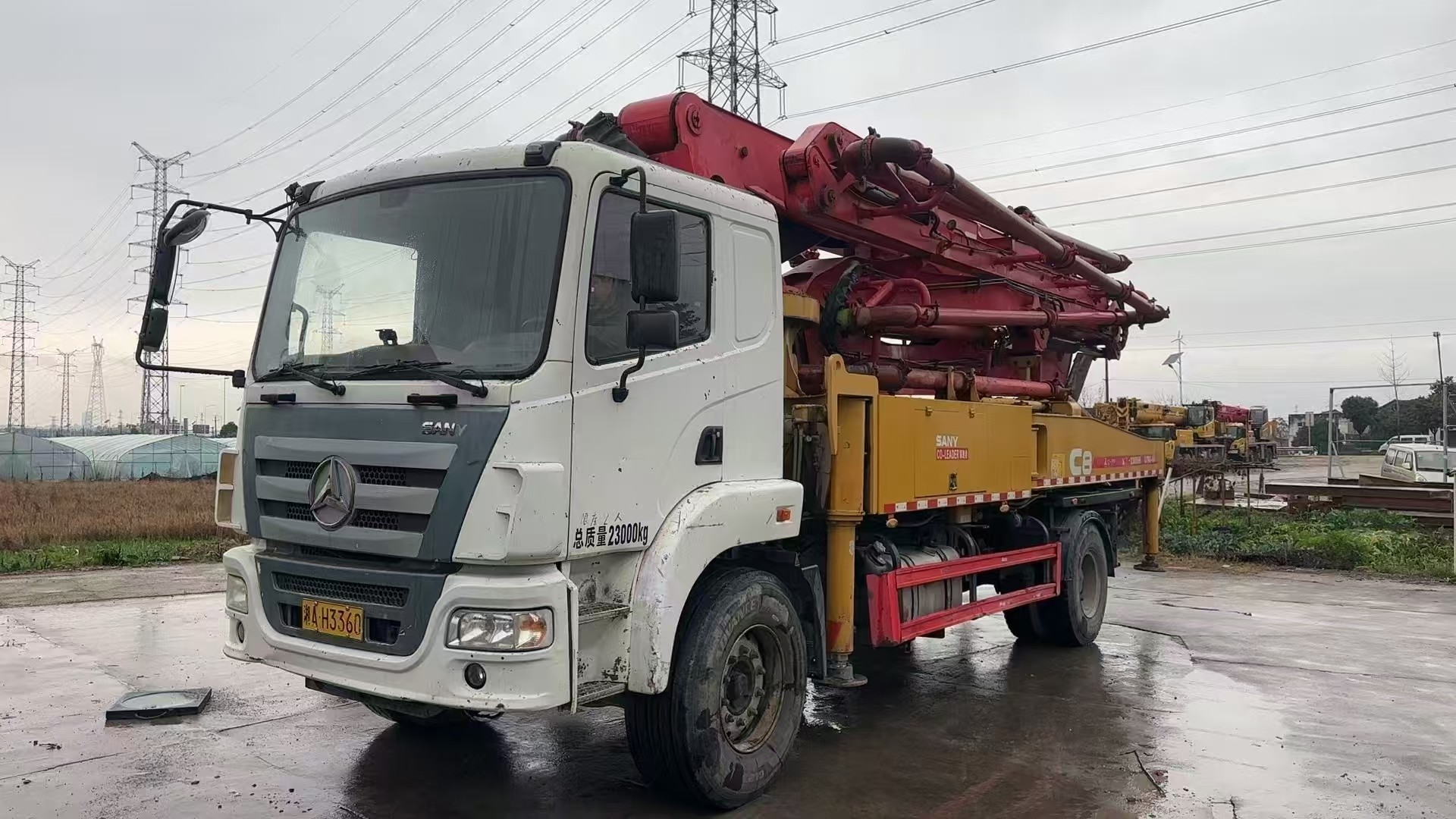

Sany high performance used 62m concrete pump truck suitable for large building construction

Sany high performance used 62m concrete pump truck suitable for large building construction

1. It adopts Sany 23-ton high-strength chassis and Hino 199KW engine as standard, with stable and reliable quality, strong horsepower and low fuel consumption.
2. It is equipped with a large cylinder diameter (Φ230mm) and large displacement (120 cubic meters/hour) pumping system, with a suction rate of more than 85%, low reversing times with the same displacement, and long life of wearing parts; the pumping system adopts electronic control reversing, which is fast and accurate in pumping reversing, with small system impact, and the actual pumping efficiency is more than 5% higher than that of conventional hydraulic control reversing system.
3. It adopts cast integrated valve group, with simple pipeline, small pressure loss, and 10% energy saving compared with conventional valve group.
4. It is equipped with one-button high and low pressure pumping function, with high pressure up to 13MPa, which is not picky about food, and can handle both "coarse grains" and "fine grains".
5. It is equipped with full power and energy-saving dual pumping modes, with lower fuel consumption.
6. It is equipped with a central controller dedicated to engineering machinery, a large-size high-definition display screen, and an LCD remote control, with stronger control system performance and more humanized operation.

Specifications:

Brand nameSANY
Pump modelSYM5230THB
Pump year2019
Boom sections4 SECTIONS RZ FOLD
Vertical Reach36.5M
Horizontal Reach31.8M
Max Concrete Output120m3/h
Conrete Press.13 MPa
Radio Remote conctrolconcrete pump remote controller
Radio Remote Brandremote controller HBC
ConditionUsed but stable condition
Repair standardBasic maintenance
Truck brandBenz chassis
Engine TypeDiesel
Max.Engine Power194 KW
Dimension(L*W*H)10050*2530*3850mm
Total Weight23000kg
Maintenance itemsHopper accessory; sheet metal;check and test all system; cleaning
